Applications
Seamless products, pantyhose, gloves, sportswear, swimwear, knitted tapes, medical bandages, etc.
Features
- Intelligent technology, three-dimensional weaving, one-step forming.

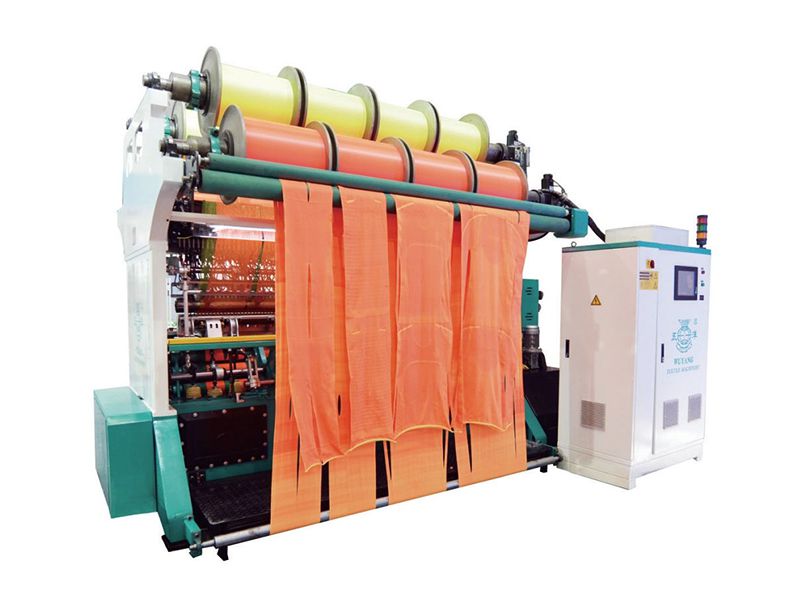

- Clothing warp knitting machine adopts an optimized eccentric-links mechanism.
- The warp knitting machine has functions of electronic yarn let off at multi-stage and variable speeds and electronic fabric take-up.
- Application of jacquard pattern technology can produce cylindrical goods and seamless products.
Specifications
Needle type Individual latch needle, block latch needle
Gauge E22, E24, E28, E30
Number of bars 4 bars (2 ground bars, 2 jacquard bars)- Number of bars 6 bars (4 ground bars, 2 jacquard bars)
Distance between knocking-over bar 0.5-2mm
Working width 90"/138"
Max. speed 650 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 2396-90" | 4100×4500×3400 | 18.5 | 8500 | 8.25 |
| 2396-138" | 5600×4500×3400 | 25.2 | 12500 | 12.75 |

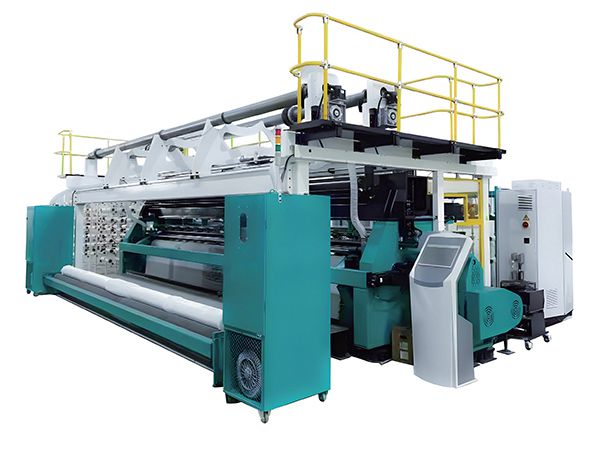

Related Fabric Warp Knitting Machines
