Applications

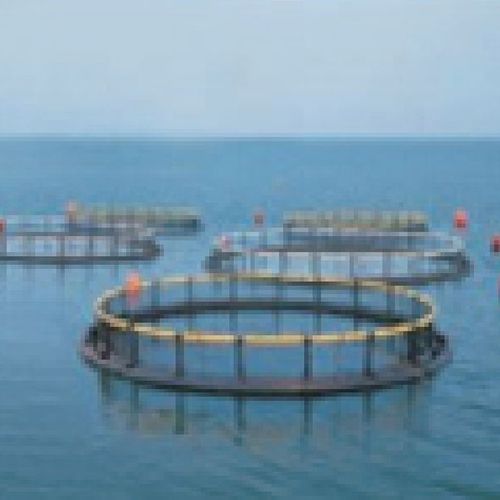

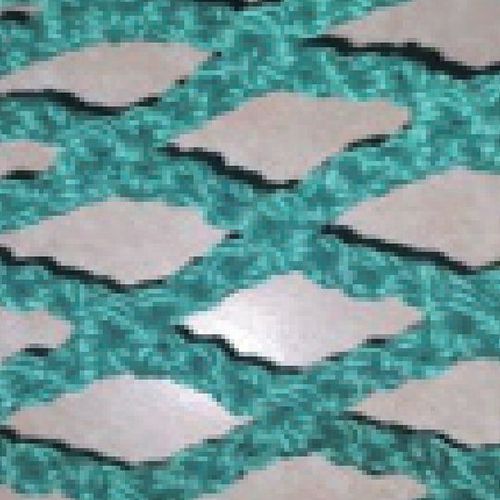

Deep-sea fishing nets and deep-sea aquaculture nets.
Features

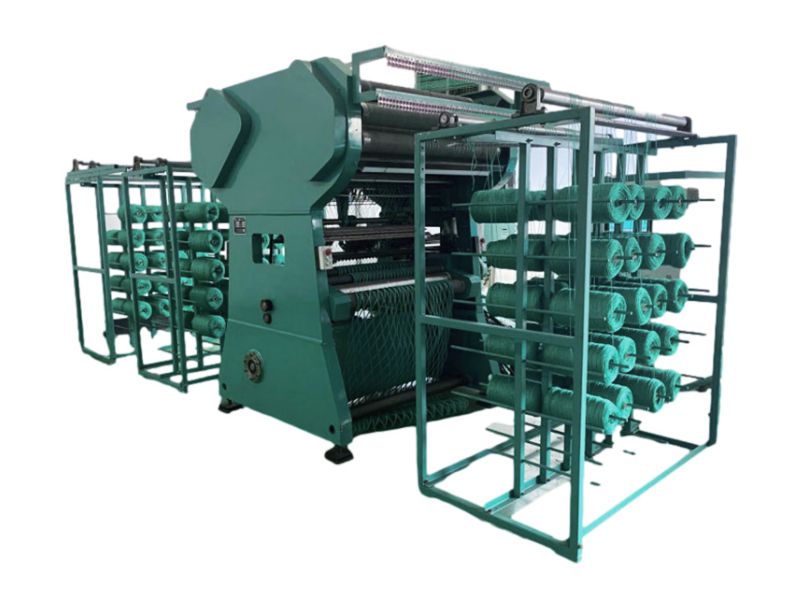

- This machine works with an oil-immersed eccentric-links mechanism.
- Uses a special extra-large latch needle for better machine adaptability.
- The net knitting machine has functions of electronic yarn let-off, electronic fabric take-up, and electronic guide bar control (EL).
- This raschel machine allows for knitting variable mesh size in the same net.
Specifications
Needle type Individual latch needle
Gauge E1.5, E2, E3, E4, E6
Number of bars 4-8 bars
Working width 44"/100"
Max. woven mesh ≥15mm
Max. speed 350 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 2100×2300×2200 | 4.83 | 3000 | 11.6 | |
| 3500×2300×220 | 8.05 | 8500 | 27.5 |
