Applications

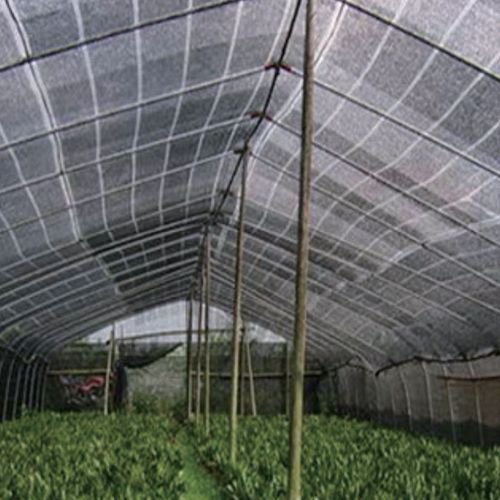

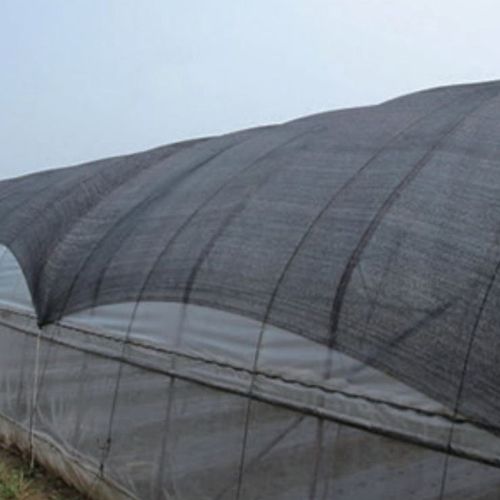

Shade nets with good breathability, mainly used for greenhouse planting, flower and tea tree cultivation, animal and plant breeding, scenic area shading, etc.
Features

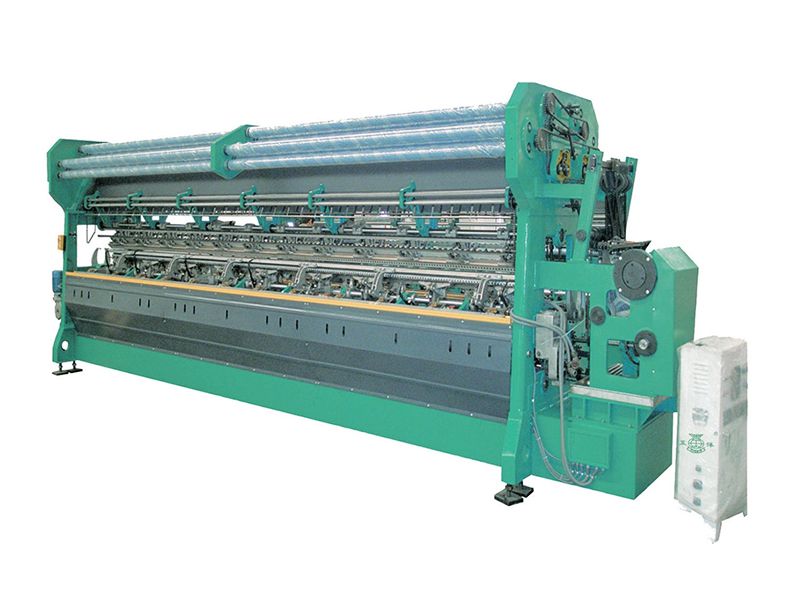

- High speed net knitting machine adopts an open type cam with a swing arm.
- The net knitting machine supports yarn let-off by creel, electronic control, roller, or warp beam.
- This Raschel warp knitting machine allows for independent batching.
- Net knitting machine can process tape yarns and monofilaments.
Specifications
Needle type Individual latch needle, block latch needle
Gauge E2, E3, E4, E6
Number of bars 5/9 bars
Working width 210"/270"/340"
Max. speed 680 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 5530×6620×2500 | 36.65 | 10000 | 14.05 | |
| 7500×6620×2500 | 46.67 | 15000 | 16.3 | |
| 9900×7000×2450 | 69.3 | 15800 | 24.6 |
