Processing materials
Weaving PE plastic filaments to make various mesh fabrics.
Applications

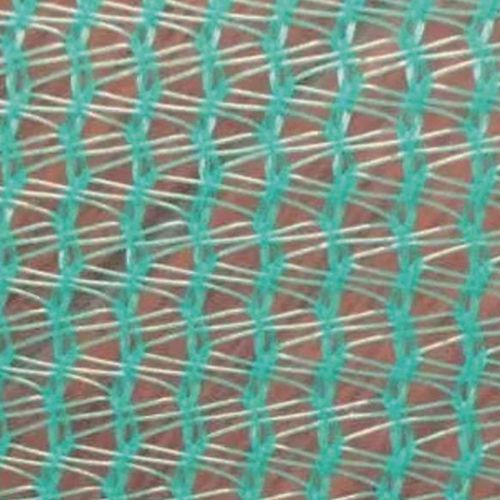

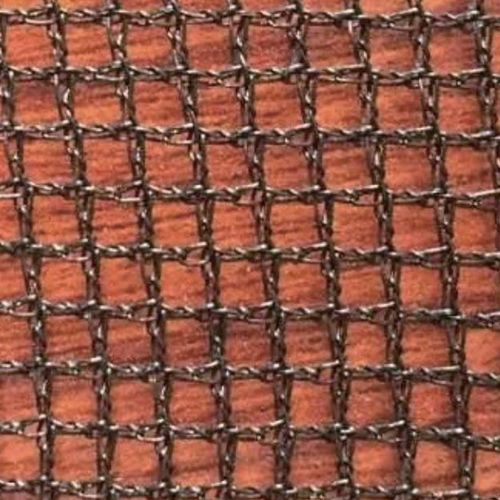

PE braided nets, architectural nets and road safety nets
Features

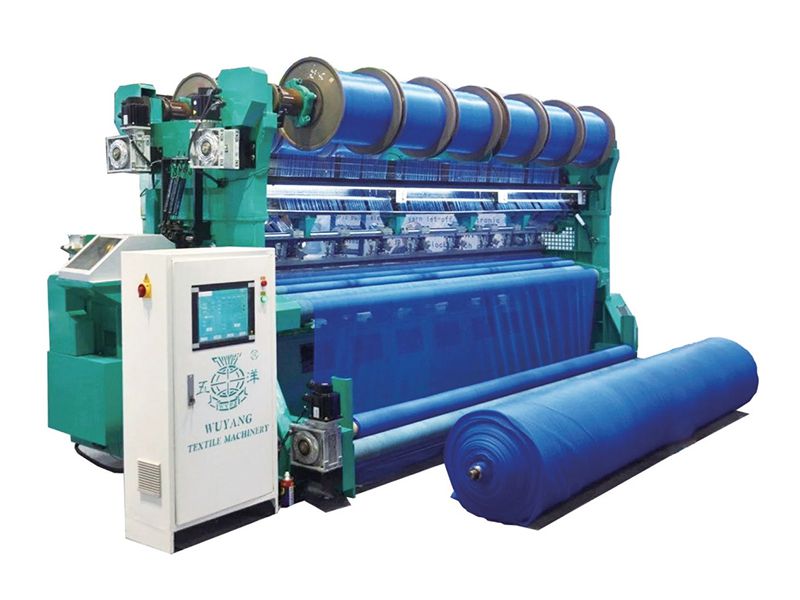

- Raschel net knitting machine utilizes a crankshaft connecting rod system.
- Net knitting machine uses short latch needles for fast operation and high fabric output speed.
- The net knitting machine is equipped with electronic yarn let-off (EBA), electronic take-up, and electronic batching functions.
Specifications
Needle type Block latch needle
Gauge E12, E18, E24
Number of bars 2 bars
Working width 138"/260"
Max. speed 1000 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 5150×1800×2450 | 9.27 | 8000 | 10.25 | |
| 10800×2300×2600 | 24.84 | 12000 | 17.3 |
