Applications
Sports barrier nets, containment nets and pallet nets
Features

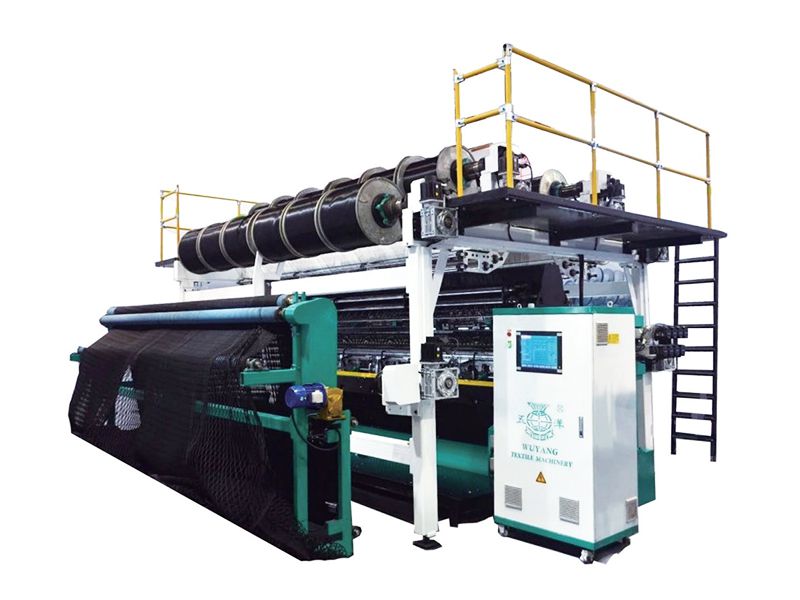

- This machine works with an open cam-linkage drive.
- The double need bar bed net knitting machine uses a special extra-large latch needle for better machine adaptability.
- The net knitting machine has functions of electronic yarn let-off, electronic batching, and electronic guide bar control (EL).
Specifications
Needle type Individual latch needle, block latch needle
Gauge E4, E6, E9, E12
Number of bars 8 bars
Working width 138"/175"/270"
Max. speed 500 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 5500×5500×3400 | 30.25 | 11000 | 15.75 | |
| 6400×5500×3400 | 35.2 | 13000 | 15.75 | |
| 8054×5500×3700 | 44.3 | 35000 | 23 |
