Processing materials
Weaving PE plastic threads to make various types of nets.
Applications

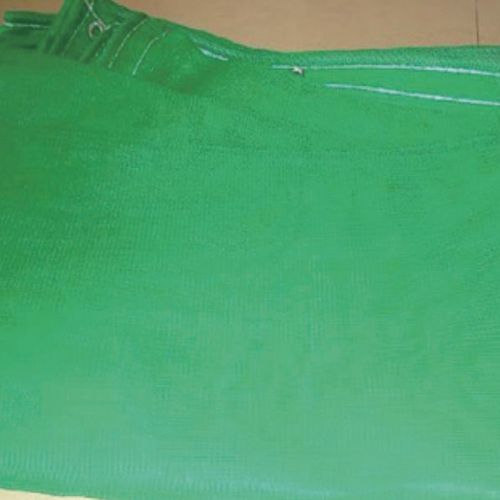

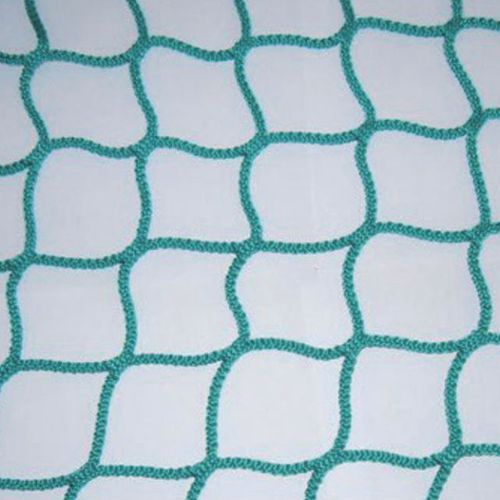

PE braided nets, architectural nets, safety nets, road safety nets, etc.
Features

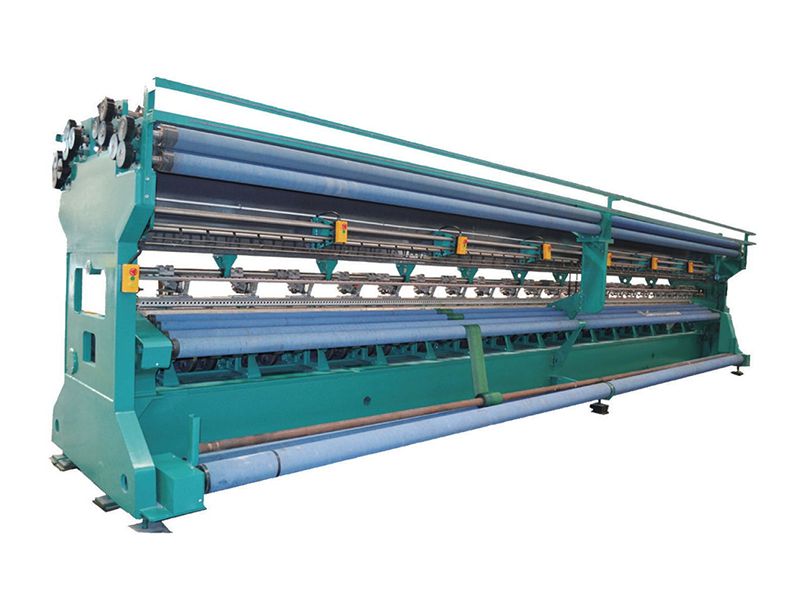

- The raschel warp knitting machine adopts an oil immersed cam-linkage mechanism.
- Net warp knitting machine features electronic fabric take-up, electronic yarn let-off, let-off by roller or creel, and electronic batching.
Specifications
Needle type Compound needle
Gauge E16, E12, E18
Number of bars 2-6 bars
Working width 260"
Max. speed 650 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| GE2291-260" | 8300×7000×2450 | 58.1 | 12000 | 24.6 |
