Processing materials
Weaving PE plastic filaments to make various mesh fabrics.
Applications

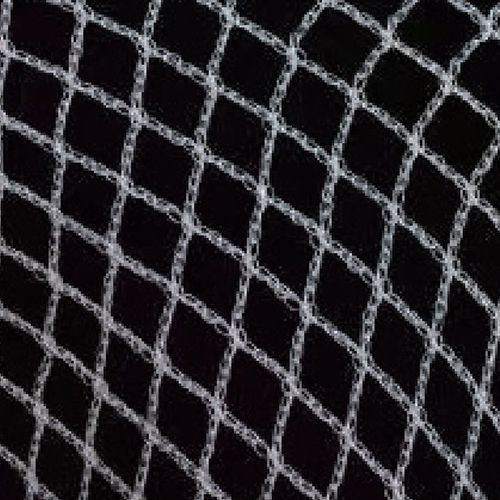

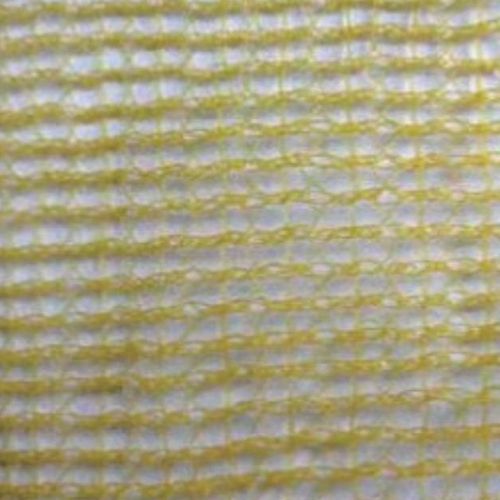

PE braided nets, architectural nets and road safety nets
Features

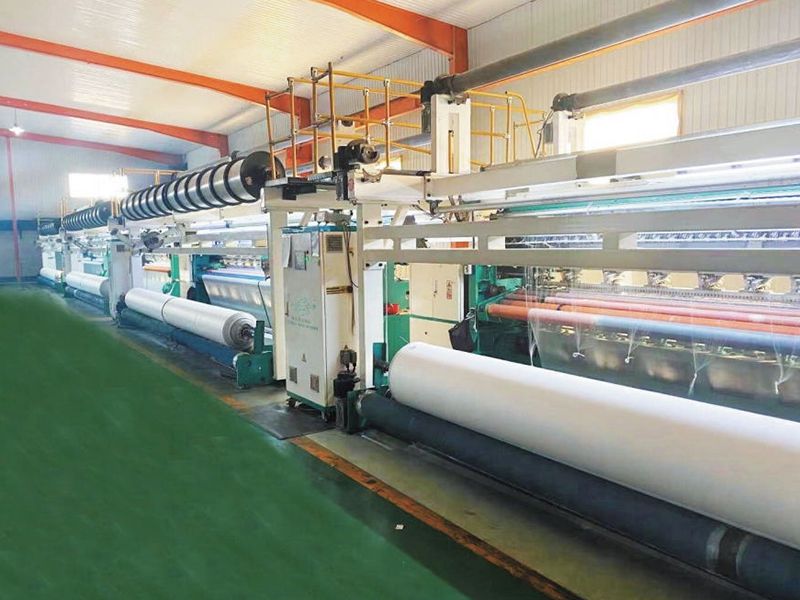

- The net warp knitting machine uses oil-immersed cam or crank connecting rod drive mechanism.
- This Raschel machine comes with a compound needle to knock over from the bar, ensuring faster production speeds.
- This net warp knitting machine adopts Raschel knitting elements.
- The Raschel warp knitting machine supports electronic yarn let-off, electronic take-up, and electronic batching functions.
Specifications
Needle type Compound needle
Gauge E6, E9, E18
Number of bars 2-4 bars
Working width 186" (customizable)
Max. speed 800 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 2200×2300×1950 | 5.06 | 3000 | 7.5 | |
| 5200×2700×1950 | 14 | 7000 | 14.75 | |
| 6200×2700×1950 | 16.74 | 8000 | 14.75 | |
| 8450×2700×1950 | 53.46 | 15000 | 18.25 |
