Applications
Eco-friendly air conditioning filter materials, short, medium, and long plush fabrics and blankets with jacquard patterns.
Features

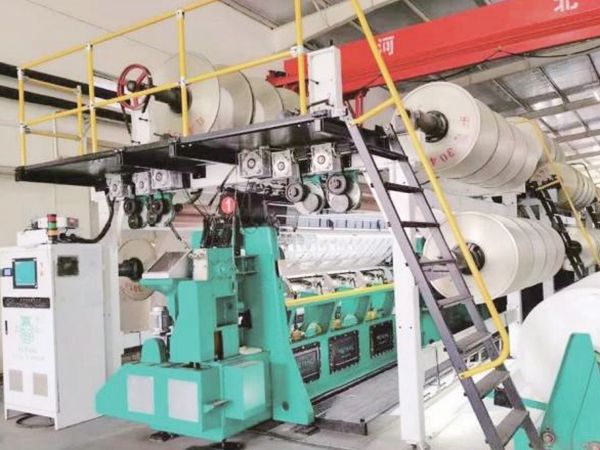

- Jacquard blanket & plush fabric warp knitting machine uses an oil immersed cam-linkage mechanism and fixed ground bars.
- Raschel warp knitting machine has functions of electronic yarn let-off and EL pattern drive with electronic guide bar drives.
- Finished plush products are not prone to shedding.
Specifications
Needle type Individual latch needle, block latch needle
Gauge E16, E18, E22
Number of bars 5/6 bars
Distance between knocking-over bar 9-50mm
Working width 100"/110"/138"
Max. speed 700 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 4400×5600×3690 | 24.64 | 8500 | 16 | |
| 4350×6050×3750 | 26.3 | 10000 | 16 | |
| 5100×6050×3750 | 30.8 | 12000 | 17.75 |
