Applications
Eco-friendly air conditioning filter materials, short, medium, and long plush fabrics and blankets with jacquard patterns.
Blankets and plush fabrics used in apparel, plush toys, blanket, decorative cloth, etc.
Features

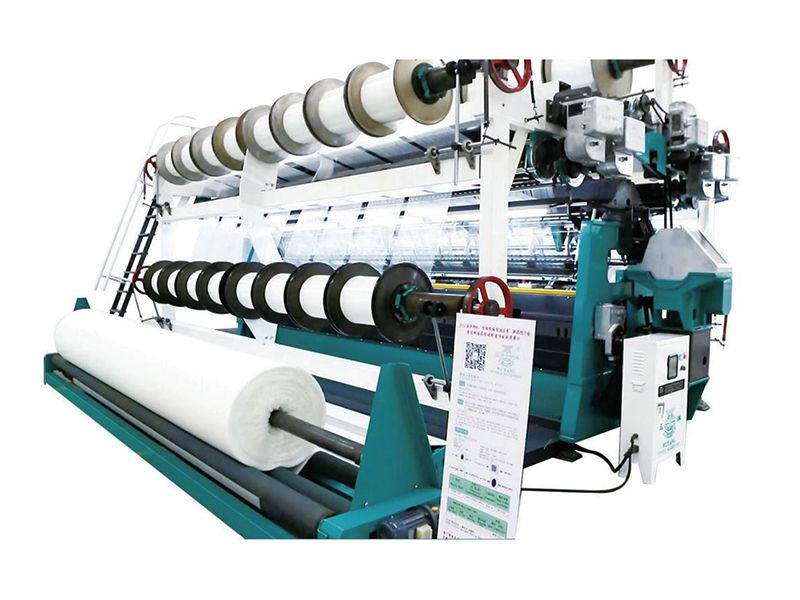

- Blanket warp knitting machine uses an open cam-linkage mechanism and fixed ground bars.
- Raschel warp knitting machine has functions of electronic yarn let-off and electronic fabric take-up.
- Finished plush products have a pile height of 5-25mm.
Specifications
Needle type Individual latch needle, block latch needle
Gauge E16, E18, E22
Number of bars 5 bars
Distance between knocking-over bar 10-50mm
Working width 90"/110"/138"/192"
Max. speed 650 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| GE289-192" | 6900×5600×3600 | 38.6 | 15000 | 10.5 |
