Applications
Carpets, blankets and plush toys, apparel textiles
Features

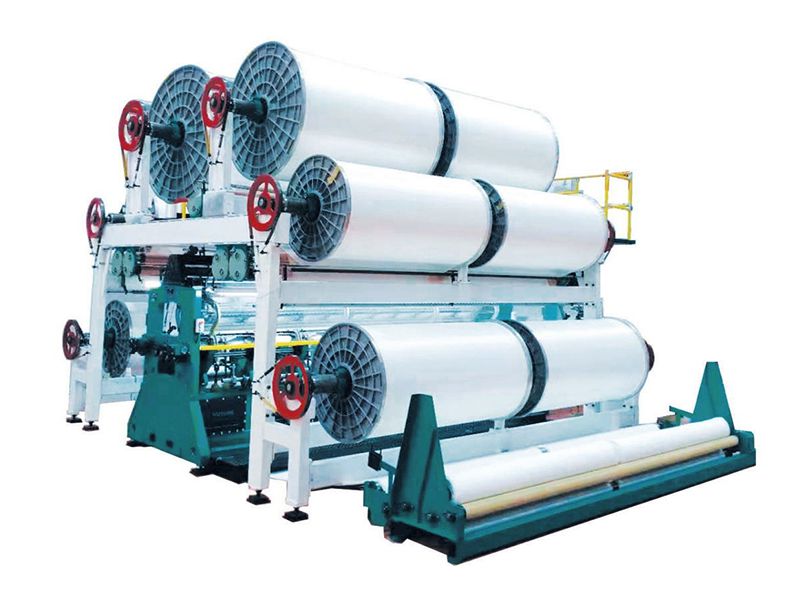

- Carpet warp knitting machine uses an oil immersed cam-linkage mechanism and fixed knock-over comb bars.
- Raschel warp knitting machine has functions of electronic yarn let-off and electronic fabric take-up.
- The textile machinery adopts special frame suitable for big beam (83×60 inch).
Specifications
Needle type Individual latch needle, block latch needle
Gauge E12, E14, E16, E18, E22
Number of bars 6 bars
Distance between knocking-over bar 8-30mm
Working width 180"
Max. speed 500 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| GE2285- Ⅱ-180" | 6600×8120×4300 | 53.46 | 15000 | 31 |
