Applications
Blankets, plush fabrics and automotive textiles
Features

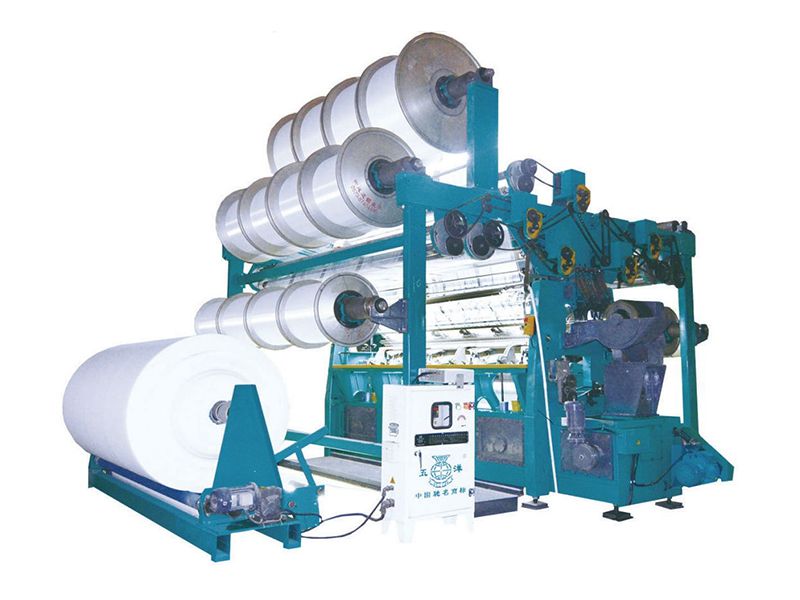

- Short plush fabric warp knitting machine uses an oil immersed cam-linkage mechanism.
- The plush has a pile height of 2-8mm.
Specifications
Needle type Block latch needle
Gauge E16 E18 E22 E24
Number of bars 5, 6 bars
Distance between knocking-over bar 4-16mm
Working width 90"100"110"138"
Max. speed 650 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 4000×5600×3690 | 22.4 | 8000 | 4.5 | |
| 4400×5600×3690 | 24.6 | 8500 | 4.5 | |
| 4800×5600×3690 | 26.9 | 10000 | 4.5 | |
| 5500×5600×3690 | 30.8 | 12000 | 5.5 |
