Applications
Short plush (milk velvet) fabrics, bedding fabrics, and sandwich fabrics.
Features

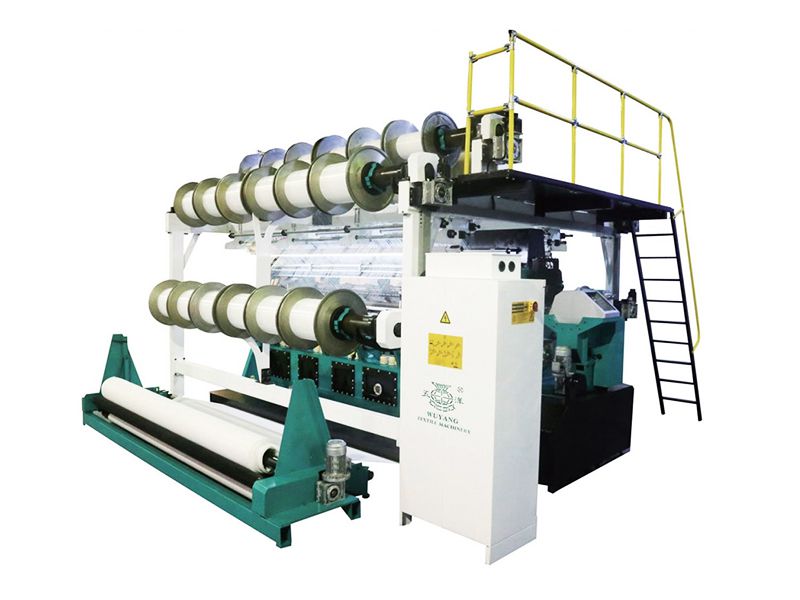

- High speed warp knitting machine uses an oil immersed cam-linkage mechanism and a fixed knock-over comb bar.
- The warp knitting machine adopts short latch needles for fast processing speed and fabric output.
- Raschel warp knitting machine has functions of electronic yarn let-off, electronic fabric take-up and electronic guide bar control (EL).
Specifications
Needle type Block latch needle
Gauge E18, E22, E24, E26
Number of bars 4/5/6 bars
Distance between knocking-over bar 2-16mm
Working width 100"/110"/138"
Max. speed 850 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| GE2292B-100" | 4300×5600×3690 | 241 | 8500 | 9.5 |
| GE2292B-110" | 4800×5600×3690 | 26.9 | 10000 | 10.5 |
| GE2292B-138" | 5500×5600×3690 | 30.8 | 12000 | 12 |
