Applications
Short, medium, and long pile fabrics used in plush toys, apparel, home upholstery, decorative fabrics, and blankets, etc.
Features

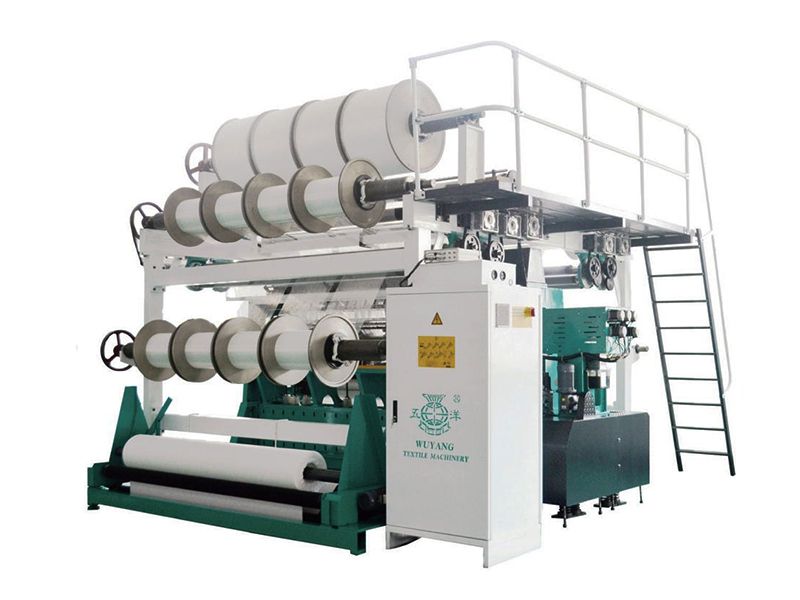

- High speed plush fabric warp knitting machine uses an oil immersed cam-linkage mechanism and fixed ground bars.
- Raschel warp knitting machine has functions of electronic guide bar control (EL), electronic yarn let-off, remote control and online diagnostic.
- The plush has a pile height of 3-25mm.
Specifications
Needle type Individual latch needle, block latch needle
Gauge E16, E18, E22
Number of bars 5 bars
Distance between knocking-over bar 6-50mm
Working width 90"/100"/110"/138"/ 150"/158"/170"/184"/210"
Max. speed 700 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 3700×6050×3750 | 22.6 | 8000 | 9.5 | |
| 4000×6050×3750 | 24.5 | 9250 | 9.5 | |
| 4350×6050×3750 | 26.4 | 10000 | 10.5 | |
| 5100×6050×3750 | 30.3 | 12000 | 12 | |
| 5100×6050×3750 | 30.3 | 12000 | 14 | |
| 5300×6050×3750 | 32.1 | 12500 | 15.5 | |
| 6100×6050×3750 | 36.9 | 14500 | 15.5 | |
| 6550×6050×3750 | 39.6 | 15250 | 17.5 | |
| 7250×6050×3750 | 43.9 | 16500 | 24.7 |
